Z1 Analyzer Traces


The Z1 Analyzer supports 50 different data channels. They are displayed in an easy to read fashion with no setup work required. Just load your lap and view your data. (Note: See this page for sim compatability.)

You can zoom in on the traces by left clicking and dragging over the desired area. Zoom in as much as you like to view every detail. To return to the full view simply double click anywhere on the trace.

A single left click anywhere on the trace will show you the exact value at that point in time.

DRIVER INPUTS:

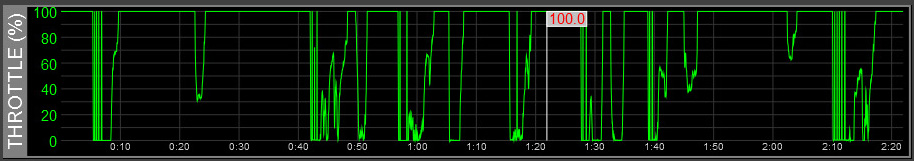

Throttle Trace:
This graphs the percentage of the throttle applied.
Z1 Analyzer Throttle Trace

Brake Trace:

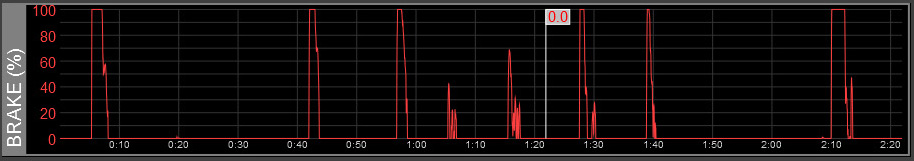

This graphs the percentage of the brake applied.
Z1 Analyzer Brake Trace

Raw Throttle Trace:

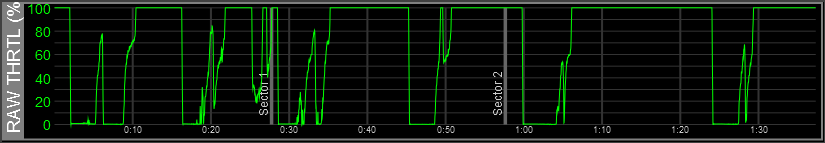

This graphs the percentage of the throttle applied before being filtered (by traction control, etc).
Z1 Analyzer Raw Throttle Trace

Raw Brake Trace:

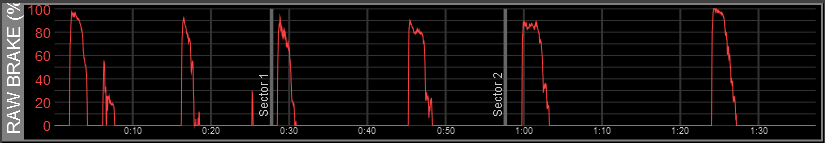

This graphs the percentage of the brake applied before being filtered (by ABS, etc).
Z1 Analyzer Raw Brake Trace

Clutch Trace:
This graphs the percentage of the clutch applied.
Z1 Analyzer Clutch Trace

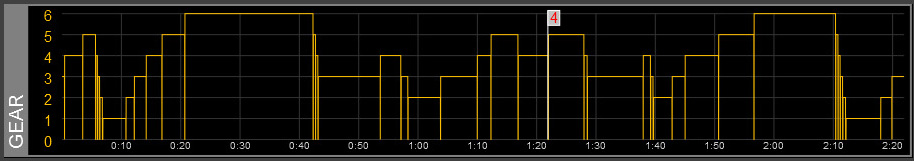

Gear Trace:
This graphs the current gear (including drops to neutral between gear shifts).
Z1 Analyzer Gear Trace

Steering Percentage Trace:

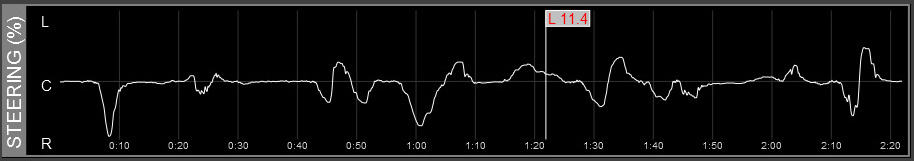

This graphs the percentage of the left or right steering applied.
Z1 Analyzer Steering Trace

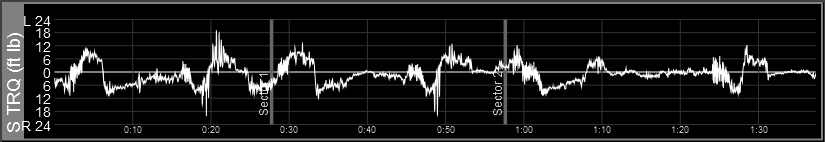

Steering Torque Trace:
This graphs the torque applied to the steering shaft.
Z1 Analyzer Steering Torque Trace

Steering Torque Percentage Trace:

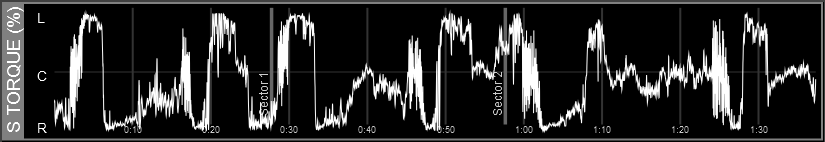

This graphs the torque applied to the steering shaft as a percentage of its maximum.
Z1 Analyzer Steering Torque Percentage Trace

Inputs Trace:

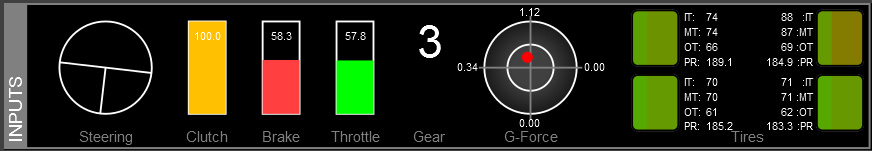

This displays the driver inputs, along with friction circle and graphical tire temperatures.
Z1 Analyzer Inputs Trace

CAR AND WHEEL SPEED:

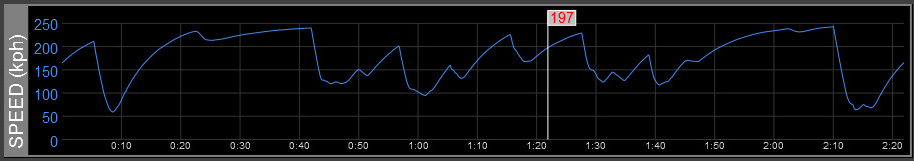

Speed Trace:
This graphs the speed of the car.
Z1 Analyzer Speed Trace

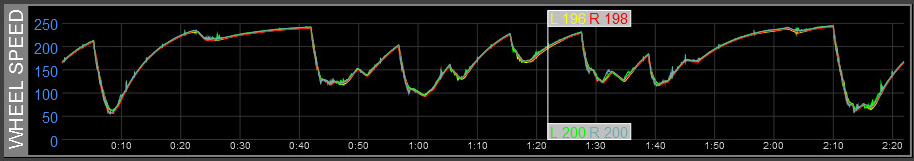

Wheel Speed Trace:
This graphs the wheel speed for each wheel.
Z1 Analyzer Wheel Speed Trace

Wheel RPS Trace:
This graphs the wheel RPS (revolutions per second) for each wheel.
Z1 Analyzer Wheel RPS Trace

SUSPENSION:

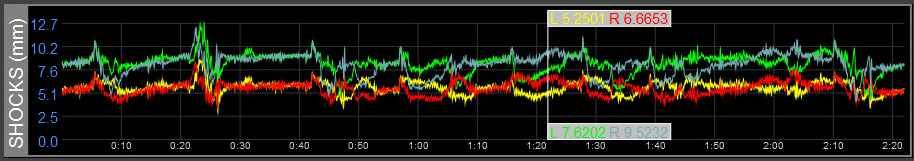

Shock Deflection Trace:
This graphs the shock deflection for each wheel.
Z1 Analyzer Shock Deflection Trace

Shock Veolcity Trace:
This graphs the shock velocity for each wheel.
Z1 Analyzer Shock Velocity Trace

Ride Height Trace:

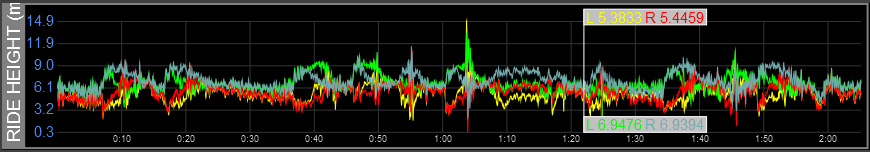

This graphs the ride height for each wheel.
Z1 Analyzer Ride Height Trace

Camber Trace:
This graphs the camber of each wheel.
Z1 Analyzer Camber Trace

Front Splitter Height Trace:
This graphs the height of the front splitter.
Z1 Analyzer Front Splitter Height Trace

Front Center Shock Deflection:
Z1 Analyzer Front Center Shock Deflection Trace
This graphs the shock deflection for the front center shock.

Front Center Shock Velocity:
Z1 Analyzer Front Center Shock Velocity Trace
This graphs the shock velocity for the front center shock.

Rear Center Shock Deflection:
This graphs the shock deflection for the rear center shock.
Z1 Analyzer Rear Center Shock Deflection Trace

Rear Center Shock Velocity:
This graphs the shock velocity for the rear center shock.
Z1 Analyzer Rear Center Shock Velocity Trace

TIRES & BRAKES:
Inner Tire Temperature Trace:

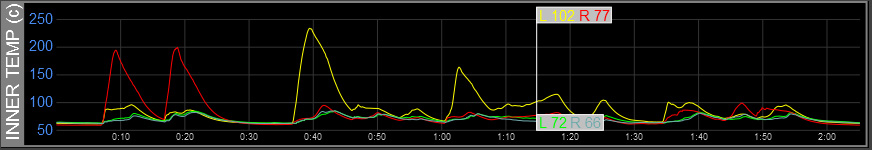

This graphs the tire temperature of the inner edge of each wheel.
Z1 Analyzer Inner Tire Temperature Trace

Middle Tire Temperature Trace:
This graphs the tire temperature of the middle of each wheel.
Z1 Analyzer Middle Tire Temperature Trace

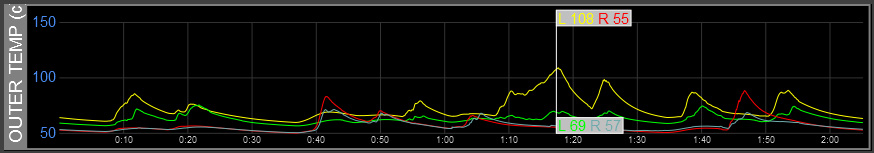

Outer Tire Temperature Trace:
This graphs the tire temperature of outer edge of each wheel.
Z1 Analyzer Outer Tire Temperature Trace

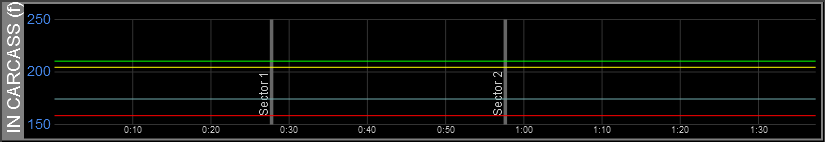

Inner Tire Carcass Temperature Trace:
This graphs the tire carcass temperature of the inner edge of each wheel.
Z1 Analyzer Inner Tire Carcass Temperature Trace

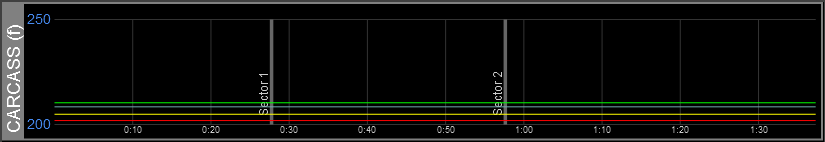

Middle Tire Carcass Temperature Trace:
This graphs the tire carcass temperature of the middle of each wheel.
Z1 Analyzer Middle Tire Carcass Temperature Trace

Outer Tire Carcass Temperature Trace:

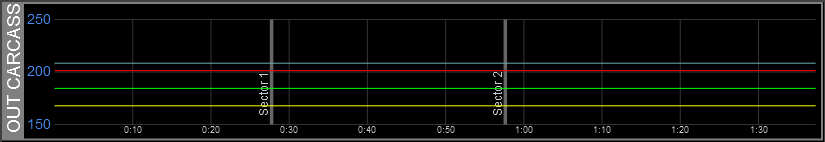

This graphs the tire carcass temperature of outer edge of each wheel.
Z1 Analyzer Outer Tire Carcass Temperature Trace

Tire Pressure Trace:

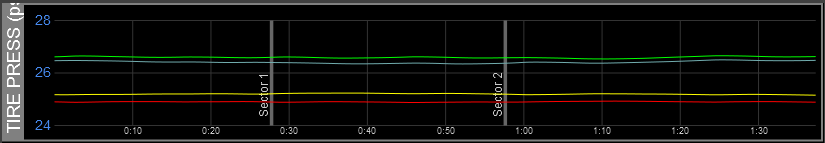

This graphs the tire pressures of each wheel.
Z1 Analyzer Tire Pressure Trace

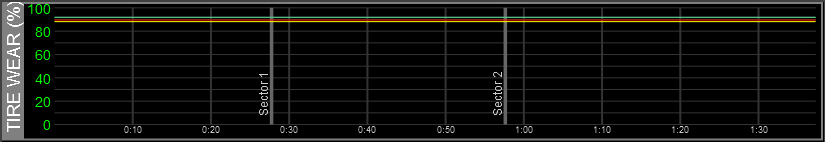

Tire Wear Trace:
This graphs the tire wear of each wheel.
Z1 Analyzer Tire Wear Trace

Brake Temperature Trace:
This graphs the temperature of the brakes.
Z1 Analyzer Brake Temperature Trace

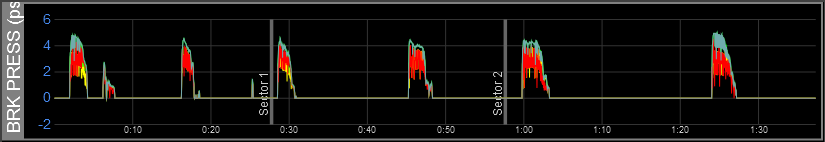

Brake Pressure Trace:
This graphs the pressure applied to each brake.
Z1 Analyzer Brake Pressure Trace

ACCELERATION:

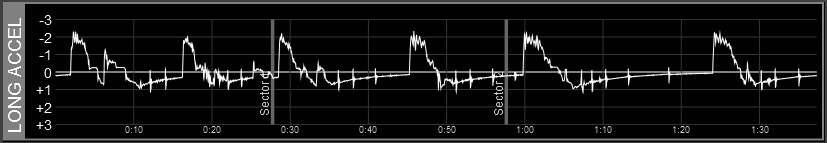

Longitudinal Acceleration Trace:
This graphs the longitudinal acceleration of the car.
Z1 Analyzer Longitudinal Acceleration Trace

Lateral Acceleration Trace:

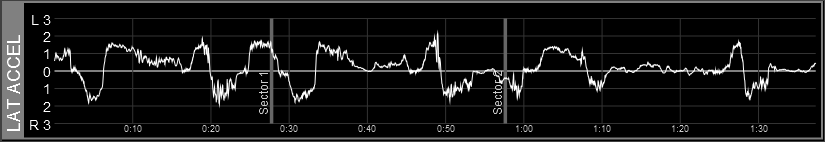

This graphs the lateral acceleration of the car.
Z1 Analyzer Lateral Acceleration Trace

Vertical Acceleration Trace:

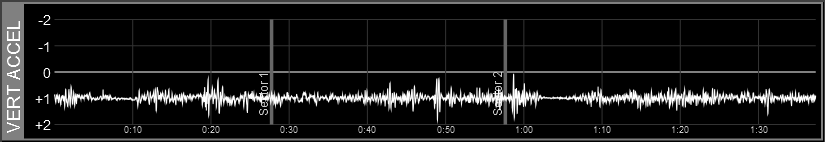

This graphs the vertical acceleration of the car.
Z1 Analyzer Vertical Acceleration Trace

ENGINE STATE:
RPM Trace:

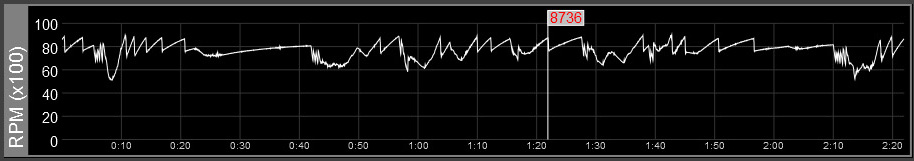

This graphs the RPM of the engine.
Z1 Analyzer RPM Trace

Manifold Pressure Trace:

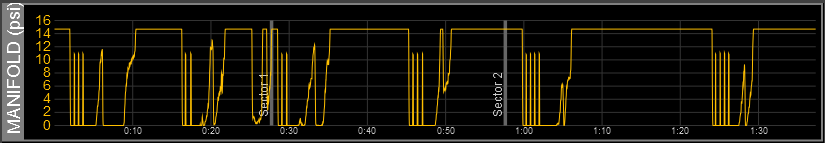

This graphs the manifold pressure in the engine.
Z1 Analyzer Manifold Pressure Trace

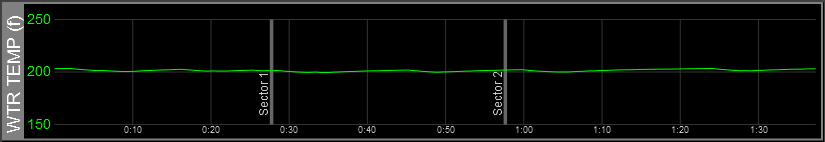

Water Temperature Trace:
This graphs the water temperature in the engine.
Z1 Analyzer Water Temperature Trace

Water Pressure Trace:
This graphs the water pressure in the engine.
Z1 Analyzer Water Pressure Trace

Oil Temperature Trace:

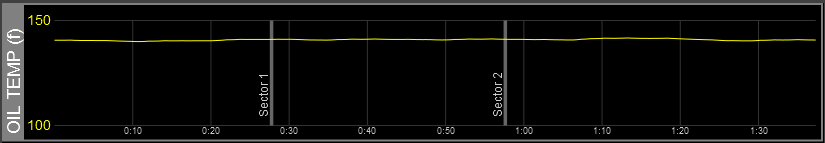

This graphs the oil temperature in the engine.
Z1 Analyzer Oil Temperature Trace

Oil Pressure Trace:
This graphs the oil pressure in the engine.
Z1 Analyzer Oil Pressure Trace

Fuel Remaining Trace:
This graphs the fuel remaining.
Z1 Analyzer Fuel Remaining Trace

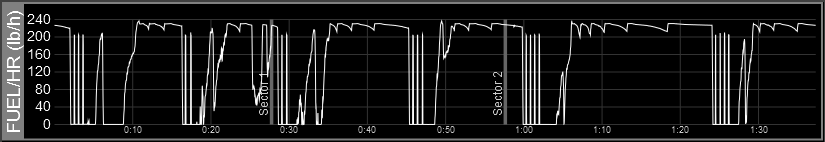

Fuel Per Hour Trace:
This graphs the rate of fuel usage per hour.
Z1 Analyzer Fuel Per Hour Trace

Fuel Pressure Trace:
This graphs the fuel pressure in the engine.
Z1 Analyzer Fuel Pressure Trace

ELECTRICAL/REGEN:
Voltage Trace:
This graphs the fuel pressure in the engine.
Z1 Analyzer Voltage Trace

ERS Trace:
This graphs the current ERS level in the power unit.
Z1 Analyzer ERS Trace

Power MGU-K Trace:
This graphs the MGU-K power in the power unit.
Z1 Analyzer Power MGU-K Trace

Torque MGU-K Trace:
This graphs the MGU-K torque in the power unit.
Z1 Analyzer Torque MGU-K Trace

Power MGU-H Trace:
This graphs the MGU-H power in the power unit.
Z1 Analyzer Power MGU-H Trace

COMPUTER:
Frames Per Second Trace:
This graphs the frames per second rate of the sim.
Z1 Analyzer Frames Per Second Trace

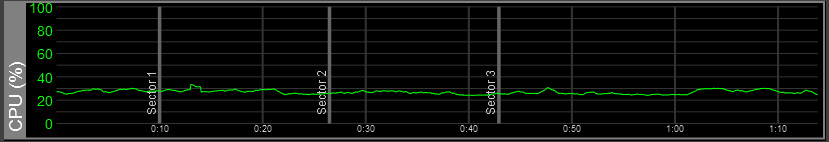

CPU Usage Trace:
This graphs the usage of the CPU.
Z1 Analyzer CPU Usage Trace
